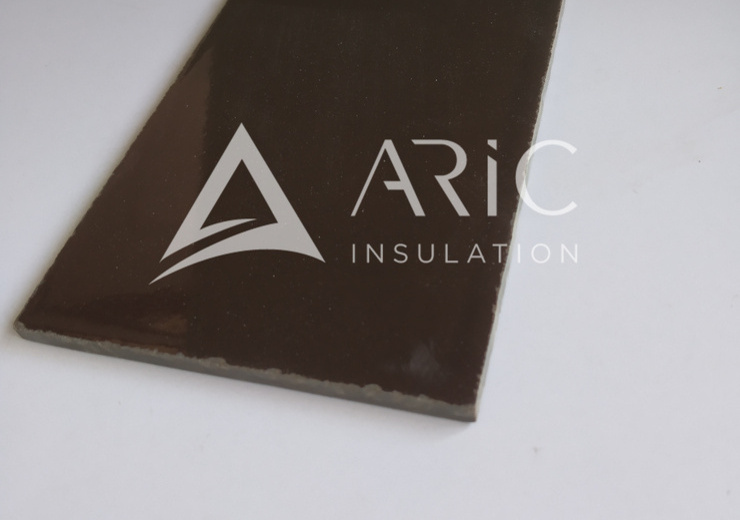

Paper base Bakelite sheets offer enhanced electrical, mechanical, electrostatic disipative or fire performance. The cost effectiveness of these products often make them electric insulators of choice in low voltage, dry service electrical equipment. The available Grades are- P1, P2, P3, P4, FR1, FR2
Key properties:
Electric Insulation, Thermal insulation , Chemical Resistance , Good Mechanical Strength
| Specification Type | Specification Value |
|---|---|
| Colour | Brown |
| Specific Gravity | 1.3-1.4 |
| Grades Available | FP1, FP2, FP3, FP4, FPR2 |
| Die-electric strength | 3 Kv/mm |
| Tensile strength | 80 N/mm2 |
| Cross Breaking Strength | 100 N/mm2 |
| Shear strength | 70 N/mm2 |
| Thickness (in mm) | 0.5 to 50mm |
| Withstanding temperature | 105-120 Degree Celcius Depending on Grade |
| Available sizes | 8*4 Feet, 4*4 Feet |
Contact us today for free conslutaion or more information.
