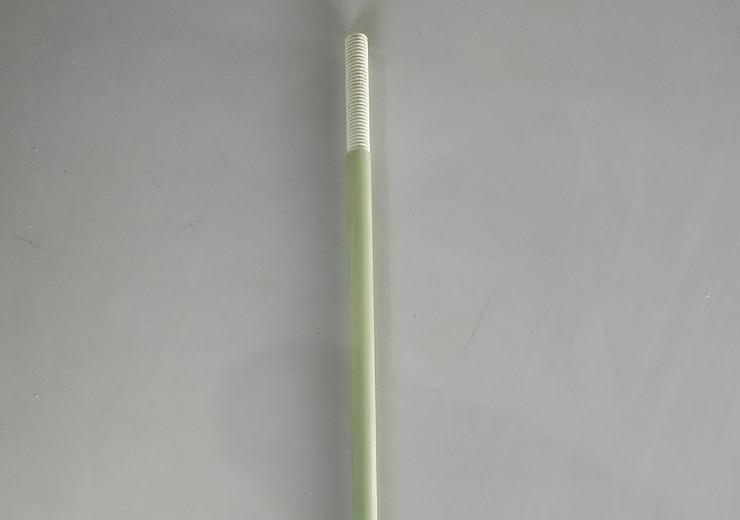

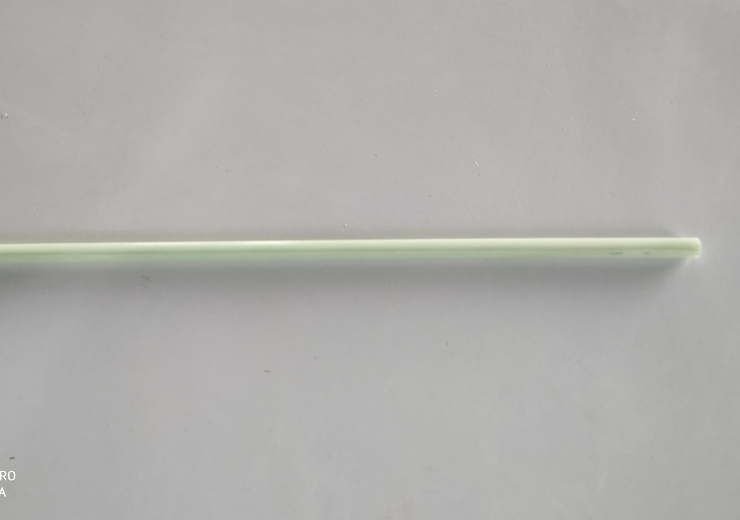

FRP Soild Rod are used for Electrical insulation purposes in Tap Changers and Dry type Tranformers
Key properties:
Electric insulation, High Tensile strength, High Strength to Weight ratio, Easy Customization, Rust Proof, Fire Retardant
| Specification Type | Specification Value |
|---|---|
| Colour | White, Orange |
| Specific Gravity | 1.9 to 2.1 |
| Glass content | 0.25 |
| Die-electric strength | 9 Kv/mm |
| Tensile strength | 70 N/mm2 |
| Compressive strength | NA |
| Shear strength | NA |
| Thickness (in mm) | 2, 3, 5, 10, 15, 20 |
| Withstanding temperature | 125 Degree Celcius |
| Available sizes | Custom |
| Arc resistence | 184 Seconds |
Contact us today for free conslutaion or more information.
